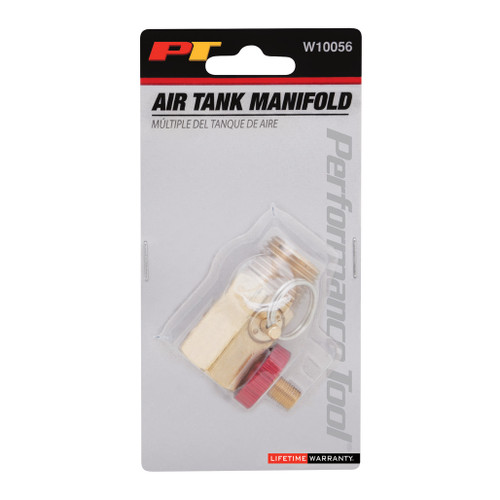

W10056

Air Tank Manifold

Performance Tool

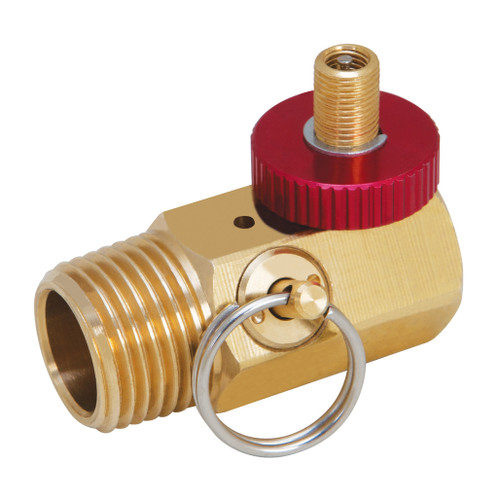

Air Tank Manifold with safety pressure bypass valve and aluminum on/off knob. Compatible with various air tank gauges and hoses.

  • Safety pressure bypass valve with manual override

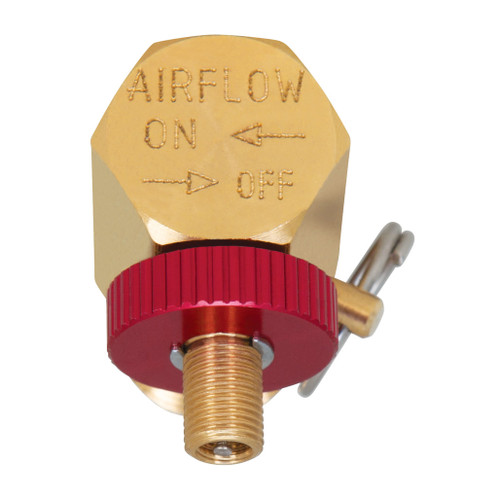

  • Lightweight, durable aluminum on/off knob

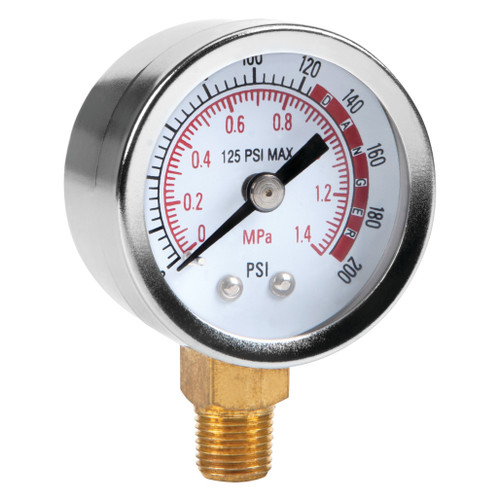

  • 1/8 in. NPT (F) for air tank gauge

  • 1/2 in. NPT (M) to air tank

  • 1/4 in. NPT (F) to air hose

  • 90 to 125 PSI preset bypass

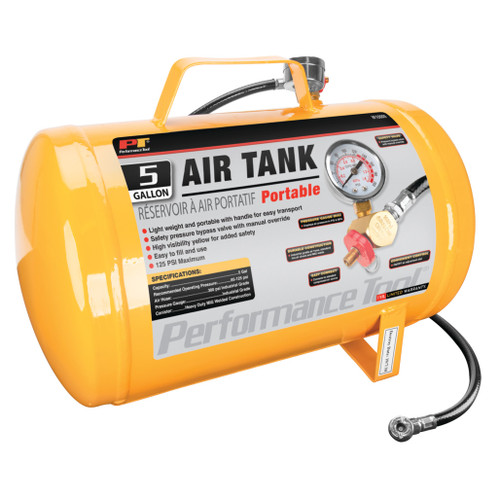

  • Compatible with Performance Tool W10005, and W10011

Warranty: Lifetime

California Prop 65 Warning
W10056- Primary

Specifications

DIMENSIONS / UPC

Quantity UPC Width Depth Height Weight
Each 039564100567 2.80 1.40 5.50 0.25
Inner 12 10039564100564 5.90 9.20 3.80 3.60
Master 72 20039564100561 10.00 12.10 12.60 21.35
Standard Pack 1

Documents / Instructions

To Replace Manifold: Drain all air from tank. Disassemble the pressure gauge and hose. Using a 22 mm open end wrench on non-ported flats of the manifold, loosen manifold from air tank. CAUTION: Manifold is made of a soft brass, care must be taken wh en turning manifold. The manifold may now be removed from the tank. To Reassemble: Apply PTFE tape to threads before assembly. Reassemble in reverse order of disassembly.
