W129C

Thickness Gauge 15 Blades

Performance Tool

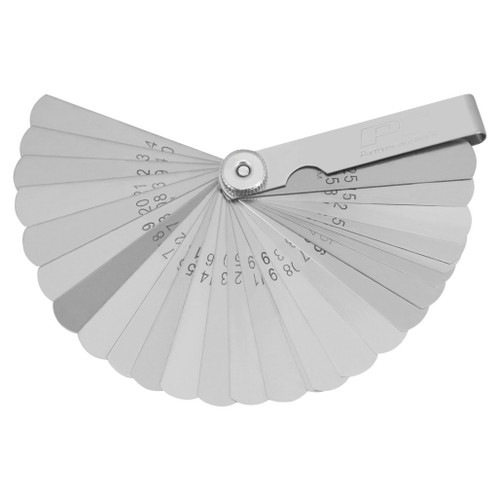

15-blade thickness gauge featuring both SAE and metric blades. Includes electrode adjuster and 2-inch steel rule.

  • 9 thickness blades 2" long and 6 flat 1" long spark plug blades.

  • Decimal and metric sizes.

  • 2" steel rule.

  • Electrode adjuster.

  • Straight Blade SAE Sizes: .002, .003, .004, .006, .008, .010, .015, .017, .018, .019, .020 and .025"

  • Straight Blade Metric Sizes: .05, .08, .10, .15, .20, .25, .38, .432, .457, .483, .50 and .63 mm

  • Flat Blade SAE Sizes: .020, .025, .028, .030, .035 and .040"

  • Flat Blade Metric Sizes: .50, .64, .70, .75, .88 and 1.02 mm

Warranty: Lifetime

Specifications

DIMENSIONS / UPC

Quantity UPC Width Depth Height Weight
Each 039564101366 1.8 0.6 6.6 0.1
Inner 6 10039564101363 3.8 6.9 2.1 0.85
Master 192 20039564101360 14.5 15.6 9.2 27.3
Standard Pack 1

Documents / Instructions

Product Videos
