W50146

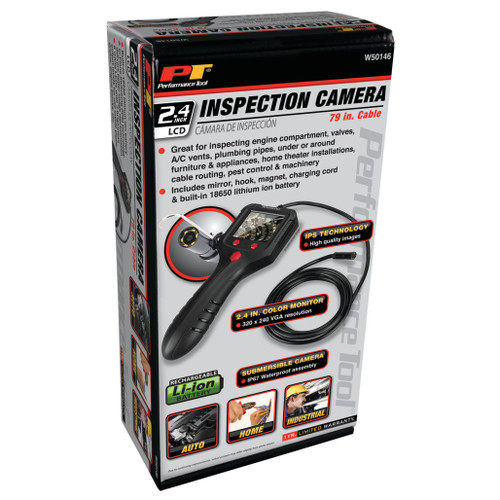

2.4" LCD Inspection Camera

Performance Tool

2.4-inch LCD inspection camera featuring a submersible lens and an extra-long flexible neck. Includes accessories for exploring hard-to-reach areas.

  • 2.4 in. color LCD monitor with 320 x 240 VGA resolution displays real time playback of hard to reach, inaccessible, or out of view areas

  • Extra-long submersible 5/16 in. (8mm) diameter camera features 79 in. (200cm) flexible neck and 640 x 480 resolution

  • In-Plane Switching (IPS) technology delivers better image representation and more accurate color at any angle

  • 6 white LEDs with 3 brightness output levels for use inside pipes, drains, engine blocks, and more

  • Great for inspecting engine compartment, valves, A/C vents, plumbing pipes, under or around furniture & appliances, home theater installations, cable routing, pest control & machinery

  • Includes mirror, hook clip, magnet, charging cable, and built-in 18650 lithium ion battery

  • Camera specifications: 8mm O.D. camera, Cable Length: 200cm, LED variability: high/medium/low/off, Waterproof camera assembly IP67, Frame Rate: 30 fps, View angle (FOV): 65°, Depth of field: 3cm-8cm

  • Operating specifications: Power: 18650 li-ion battery, USB Type-C charging port, Charge time: 4 hours, Run time: 3-4 hours, Operating temperature: 32-158º F (0-70º C)

Warranty: 1 Year

Specifications

DIMENSIONS / UPC

Quantity UPC Width Depth Height Weight
Each 039564001451 5.2 2.8 9.8 0.8
Master 30 20039564001455 14.2 20.2 16.6 25.45
Standard Pack 1
