W83112

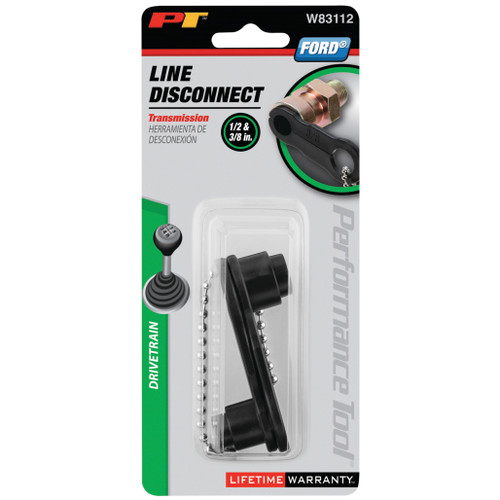

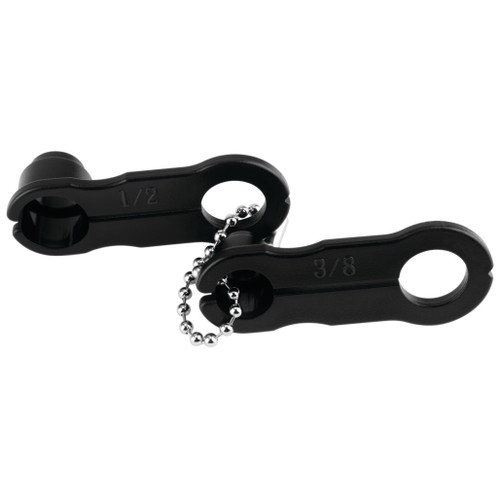

2 pc. Ford Trans Line Disconnect Tool

Performance Tool

Disconnect Ford transmission oil cooler lines with this tool that features a specially designed stepped tip. Available in two sizes.

  • Designed to disconnect Ford transmission oil cooler lines

  • Simply push the specially designed stepped tip towards the connector, once engaged pull the line

  • Use 3/8" size for 2003 and later Ford V8 Explorer, 2004 and later Ford F150 and Cadillac CS

  • Use 1/2" size for Ford Super Duty Trucks, F250, F350 and F450

Warranty: Lifetime

California Prop 65 Warning
W83112- Primary

Specifications

Piece Count 2

DIMENSIONS / UPC

Quantity UPC Width Depth Height Weight
Each 039564123344 2.9 1.1 6.5 0.05
Inner 12 10039564123341 7.9 8.0 2.9 0.9
Master 144 20039564123348 8.9 16.2 18.1 12.65
Standard Pack 1

Documents / Instructions

1. Choose the disconnect tool that fits your vehicle application. A. 3/8 in. For passenger cars and light trucks. B. 1/2 in. For F250, F350, and F450 trucks. 2. Spread the release tool over the line with the inner lip facing the spring or open side of line fitting. 3. Press inner lip of tool into the line fitting until it engages and it releases the line. 4. Separate the line from the fitting, be prepared for fluid to leak out. 5. To reconnect, simply push the line back into the fitting until i
