W86550

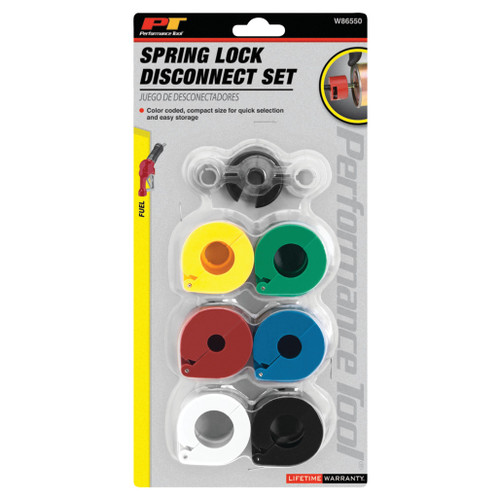

9 pc. Disconnect Set

Performance Tool

Disconnect spring lock connectors with this nine-piece disconnect set. Includes nine different sizes for A/C, fuel and transmission lines.

  • Separates spring lock in air conditioning, fuel and transmission line connectors.

  • Spring loaded closed clamp deflects spray when disconnecting lines.

  • Applications: Red: 3/8" A/C lines

  • Blue: 1/2" A/C lines

  • Black: 5/8" A/C lines

  • White: 3/4" A/C lines

  • Yellow: 3/8" fuel lines

  • Green: 1/2" fuel lines

  • Gray: 5/16" fuel lines (quick connect type)

  • Blue (small): 3/8" fuel lines (quick connect type), transmission, radiator and fuel line disconnect tool and push lock connectors.

Warranty: Lifetime

California Prop 65 Warning
W86550- Primary

Specifications

Piece Count 9

DIMENSIONS / UPC

Quantity UPC Width Depth Height Weight
Each 039564812828 5.25 1.3 10.5 0.35
Inner 6 10039564812825 5.7 16.4 4.4 2.3
Master 72 20039564812822 17.5 17.9 18.5 29.7
Standard Pack 1

Documents / Instructions

1. With the raised inner portion of the tool facing towards the fitting, open tool and place over fuel line. Spring will close tool. 2. Push the tool so the raised portion of the tool slides into gap between fuel fitting and line to release lock. It may be necessary to wiggle the line or slightly turn it to release line. 3. Pull line back away from the tool while holding tool in place.
