W86562

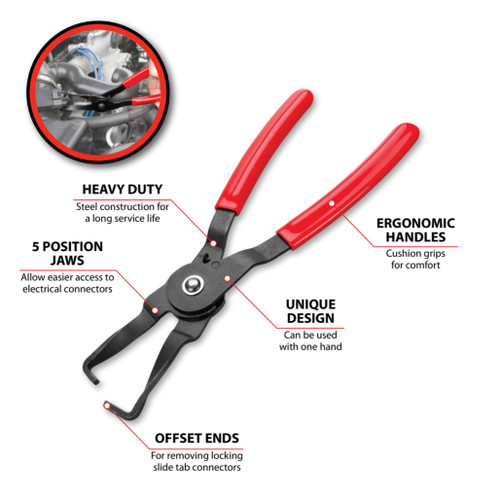

Adjustable Jaw Electrical Disconnect Plier

Performance Tool

  • Easily removes the locking push tab style electrical connectors found on many vehicles

  • Jaws adjust to five different positions allowing easier access to electrical connectors

  • The unique design allows the technician to use the tool with one hand, freeing up the other

  • Adjustable jaws work well when very limited or confined space is available

  • Heavy-duty steel construction with ergonomic red vinyl handle grip for comfort

  • 10.5 in. (26.67 cm) overall length in the straight position

  • Application: mass air flow sensors, fuel injectors, ignition coils, and instrument clusters

Warranty: Lifetime

California Prop 65 Warning
W86562- Primary

Specifications

Assembly Required No
Color Red, Black
Contents One pair of electric disconnect pliers
Finish Black Phosphate
Handle Material Vinyl
Material Steel
Piece Count 1
Power Source Hand Powered
Product Depth (in) 0.5
Product Height (in) 10.5
Product Width (in) 2.25
Product Weight (lb) 0.6

DIMENSIONS / UPC

Quantity UPC Width Depth Height Weight
Each 039564153686 5.0 0.9 13.0 0.7
Inner 6 10039564153683 13.3 5.5 4.9 4.25
Master 48 20039564153680 11.9 13.9 19.8 35.65
Standard Pack 1

Documents / Instructions

Use the hooked jaw to pull out the red tab to unlock, then use the point to engage the tab. Squeeze the tabs together and lift to separate the plug from the connector without damage
