W86566

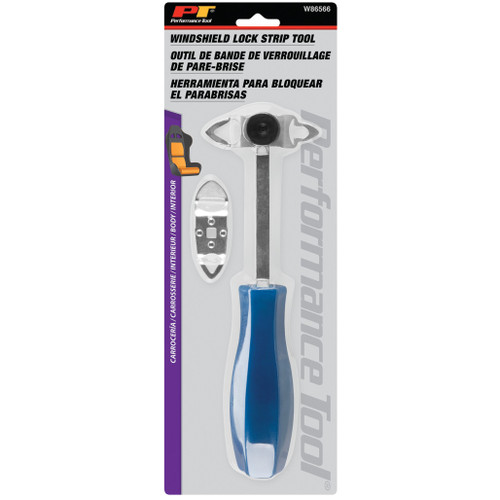

Windshield Locking Strip Tool

Performance Tool

Replace windshield weather-stripping with this locking strip tool. Featuring four sizes to fit most applications.

  • It is specifically designed for self-sealing two-piece rubber weather-stripping found on some vehicles

  • This tool is used when replacing the windshield, rear glass, or sliding rear glass on vehicles

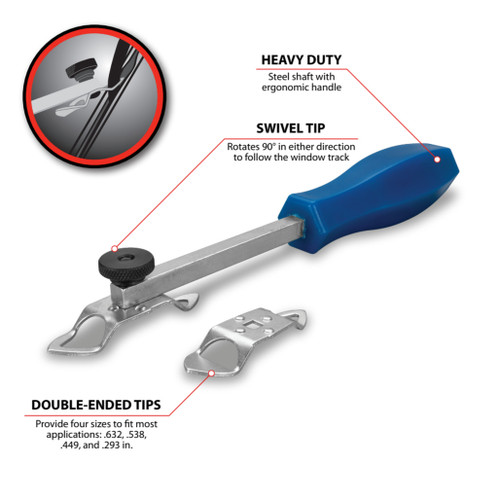

  • The unique design allows the user to swivel the tip 90° in either direction to follow the window track

  • Two double-ended tips provide four sizes to fit most applications, .632, .538, .449, and .293 in. (16 mm, 13.5 mm, 11.5 mm, and 7.5 mm)

  • 8 in. (200 mm) overall length

Warranty: Lifetime

California Prop 65 Warning
W86566- Primary

Specifications

Assembly Required No

DIMENSIONS / UPC

Quantity UPC Width Depth Height Weight
Each 039564154263 4.0 1.5 11.5 0.45
Inner 6 10039564154260 11.8 7.8 4.4 2.8
Master 48 20039564154267 18.1 12.4 17.1 38.5
Standard Pack 1

Documents / Instructions

1) Match the opening in the tip with one that closely fits your lock strip. 2) Simply thread the locking strip into the eyelet of the tool, then insert it into the rubber molding. 3) Work tool around windshield while feeding locking strip into eyelet . 4) Use soap and water for lubricant to help the tool slide into molding.
