W4001DB

40 pc. SAE Tap and Die Set

Performance Tool

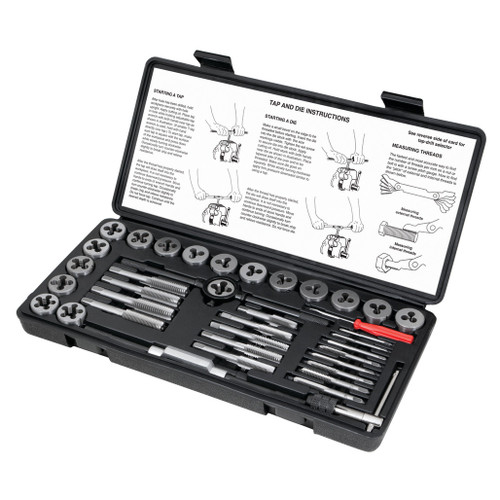

40-piece tap and die set that includes a variety of SAE sizes. Comes in a blow-molded plastic storage case.

  • NC, NF and NPT sizes.

  • Blow molded plastic storage case.

  • Set Includes: 17 taps and 17 dies, tap wrench, T-handle tap wrench, die stock, screwdriver and screw pitch gauge.

  • Die included: 4-40 NC No.43, 6-32NC No.36, 8-32 NC 9/64-inch, 10-24 NC 5/32-inch, 10-31 NF 11/64-inch, 12-24 NC 1/3-inch, 1/4-20 NC 13/64-inch, 1/4-28 NF 7/32-inch, 5/6-18 NC 17/64-inch,

  • Die included (continued): 5/16-24 NF 9/32-inch, 3/8-16 NC 5/16-inch, 3/8-24 NF 21/64-inch, 7/6-14 NC 3/8-inch, 7/16-20 NF 25/64-inch, 1/2-13 NC 27/64-inch, 1/2-20 NF 29/64-inch, 1/8-27 NPT 21/64-inch.

Warranty: Lifetime

California Prop 65 Warning
W4001DB- Primary

Specifications

Case Included Yes
Color Black
Contents Adjustable tap wrench, t-handle tap wrench, adjustable die wrench, screwdriver, pitch gauge, (17) taps, (17) dies
Die Size(s) 4-40 NC #43, 6-32 NC #36, 8-32 NC 9/64, 10-24 NC 5/32, 10-32 NF 11/64, 12-24 NC 3/16, 1/4-20 NC 13/64, 1/4-28 NF 7/32, 5/16-18 NC 17/64, 5/16-24 NF 9/32, 3/8-16 NC 5/16, 3/8-24 NF 21/64, 7/16-14 NC 3/8, 7/16-20 NF 25/64, 1/2-13 NC 27/64, 1/2-20 N...
Material High Carbon Steel
Piece Count 40
Pitch Gauge Included Yes
SAE or Metric SAE
Screw Driver Included Yes
Tap Size(s) 4-40 NC #43, 6-32 NC #36, 8-32 NC 9/64, 10-24 NC 5/32, 10-32 NF 11/64, 12-24 NC 3/16, 1/4-20 NC 13/64, 1/4-28 NF 7/32, 5/16-18 NC 17/64, 5/16-24 NF 9/32, 3/8-16 NC 5/16, 3/8-24 NF 21/64, 7/16-14 NC 3/8, 7/16-20 NF 25/64, 1/2-13 NC 27/64, 1/2-20 N...
Tap Wrench Included Yes

DIMENSIONS / UPC

Quantity UPC Width Depth Height Weight
Each 039564156021 12.9 1.8 6.4 3.05
Master 10 20039564156025 13.9 14.3 9.3 30.95
Standard Pack 1
