W85018

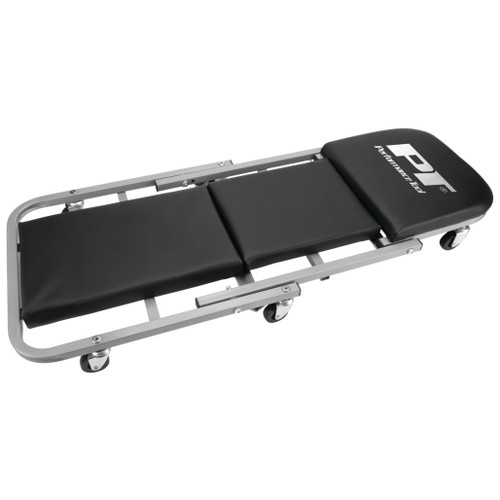

2-in-1 40" Z-Frame Folding Creeper

Performance Tool

This Z-frame creeper serves two shop necessities: it lies flat for easy access under low-clearance vehicles, and it folds into a seat for working on vehicle level in comfort. It features six 2 in. shielded casters for easy and quick movement across your garage or shop. The entire surface is cushioned, and the Z-Frame Creeper features a large headrest with extra padding. The powder-coated steel frame means this creeper will resist corrosion and remain reliable for job after job.

  • Easily converts from a creeper to rolling seat

  • Padded cushions for added comfort both lying flat and sitting upright

  • Six shielded 2 in. (50 mm) swivel casters allow for effortless movement and added stability

  • Low profile for added clearance under vehicles

  • Powder-coated tubular steel frame with a large 13 in. x 11-1/4 in. (330 x 285 mm) cushioned headrest

  • Locking pin prevents unwanted movement, and retracts easily for quick conversion

  • Flat dimensions: 40 in. L x 16-7/8 in. W x 5-1/8 in. H (1015 x 430 x 130 mm)

  • Folded dimensions: 20-1/2 L x 16-3/4 H x 16-7/8 in. W (520 x 430 x 415 mm)

  • Flat capacity: 300 lb. (136 Kg)

  • Folded capacity: 286 lb. (130 Kg)

  • Replacement casters available: Performance Tool model W85002

Warranty: 1 Year

California Prop 65 Warning
W85018- Primary

Product Videos

Specifications

Color Black,Gray
Finish Powder Coated
Number of Wheels 6
Weight Capacity (lbs) 300

DIMENSIONS / UPC

Quantity UPC Width Depth Height Weight
Each 039564149450 40.8 3.5 18.0 15.95
Standard Pack 1

Documents / Instructions

1. Lay out the three Pad Assemblies (A) as shown and align the lynch pin in the bottom two sections. 2. Align the holes in the sides of the frames and insert the Hex Head Bolts (C) through each hole. 3. Thread on the Hex Locknuts (D) to the Hex Head Bolts (C) and finger tighten. Once snug, flip the creeper over so the bottom side is facing up. 4. Using any two of the Tools noted above, hold each Hex Head Bolt (C) in place, and tighten each Hex Locknut (D). Repeat for all four joints but DO NOT
